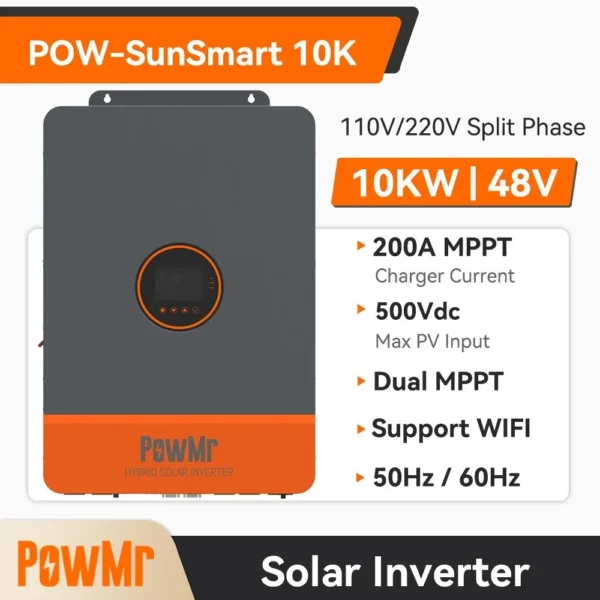

PowMr 10KW 48V 120V/240V Split Phase Solar Hybrid Inverter 200A MPPT Controller
$1,650.00
Package Include:
Compra seguraFlujo limpio y rápido
Gestión propiaIntegrado a tu ecosistema
Atención directaExperiencia enfocada en conversión
Detalles del producto
Instructions

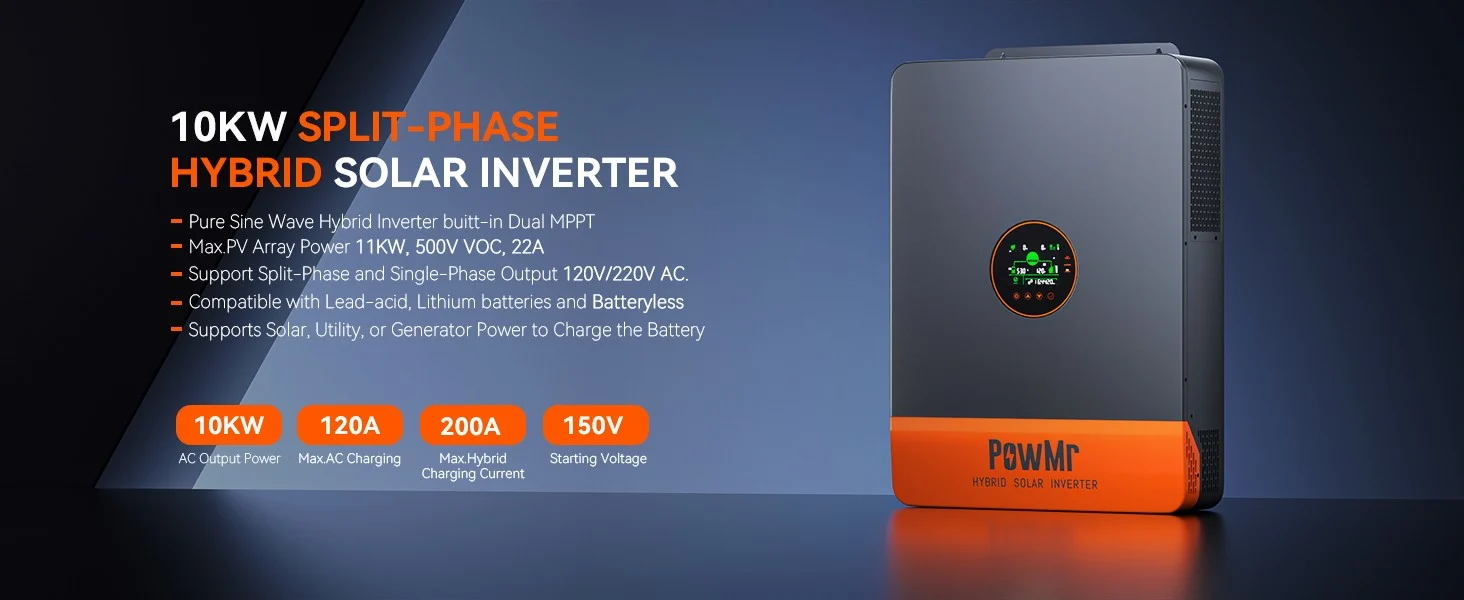

- 【10KW Solar Inverter】This is a solar inverter with both single-phase and split-phase functions. Is a new type of solar energy storage inverter control inverter integrating solar energy storage & utility charging and energy storage, AC sine wave output. It adopts DSP control and features high response speed,reliability, and industrial standard through an advanced control algorithm.
- 【14 Smart Protection Functions】: Multiple intelligent protections, such as PV input current/power limiting protection, PV input over-voltage, PV night reverse current protection, AC input over-voltage protection, AC input under-voltage protection, etc.
- 【Technical Specifications】: Max.PV array power:11000W, Max.MPPT Charging Current:200A, Rated Output Power:10000W, Max.Peak Power:20,000W, Rated Output Voltage:120/240Vac（split phase/single phase） , Max.Voltage of Open Circuit:500Vdc.Embedded Interfaces:RS485 / CAN / USB / Dry contact.
- 【Dual MPPT/Battery Type】: Dual MPPT with 99.9% efficiency and maximum 22A current in a single circuit, perfectly adapted to high power modules.Compatible with various batteries such as AGM, Gel, Lead-acid, Lithium-ion and LiFePO4 batteries, and supports battery-free. With a dual activation function when the li-ion battery is dormant; either mains/photovoltaic power supply access can trigger the activation of the li-ion battery.

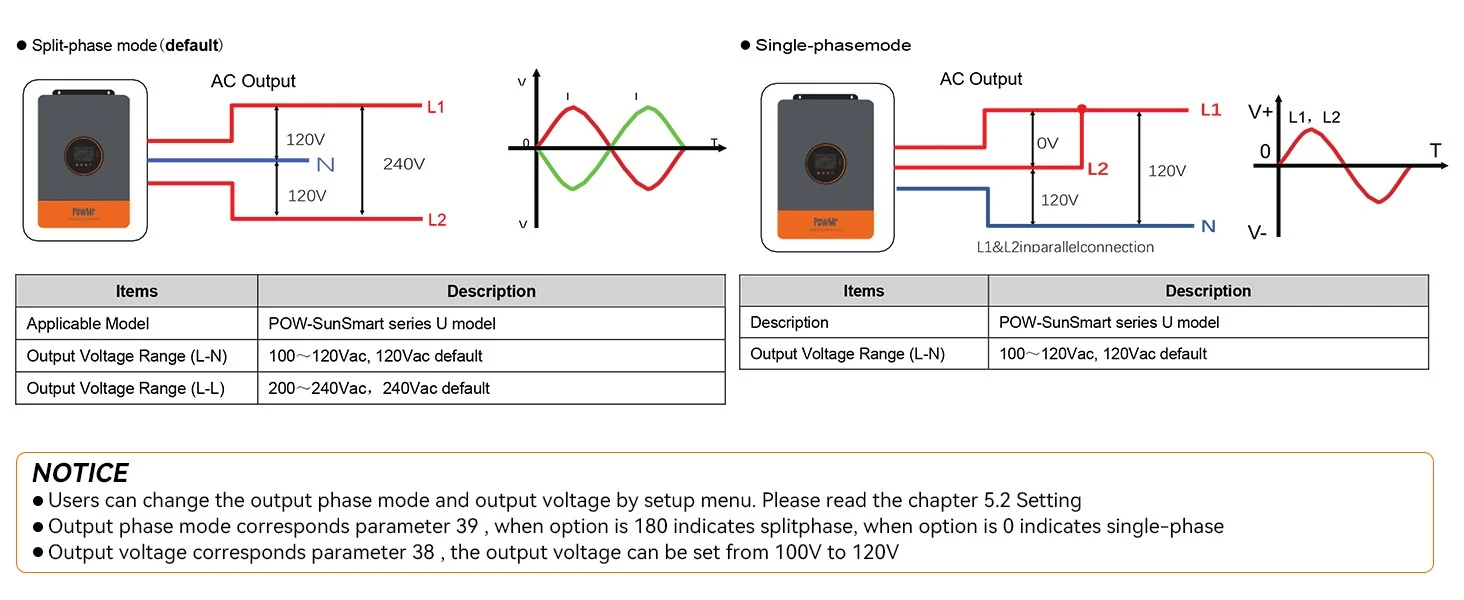

- 【Single/Split-phase mode】: In split-phase mode: Output Voltage Range (L-N): 100～120Vac, 120Vac default, Output Voltage Range (L-L): 200～240Vac, 240Vac default. In single phase mode: Output Voltage Range (L-N): 100～120Vac, 120Vac default.
- 【Time-slot charging/Discharging function】:The POW-SunSmart series is equipped with a time-slot charging and discharging function, which allows users to set different charging and discharging periods according to the local peak and valley tariffs, so that the utility power and PV energy can be used rationally.

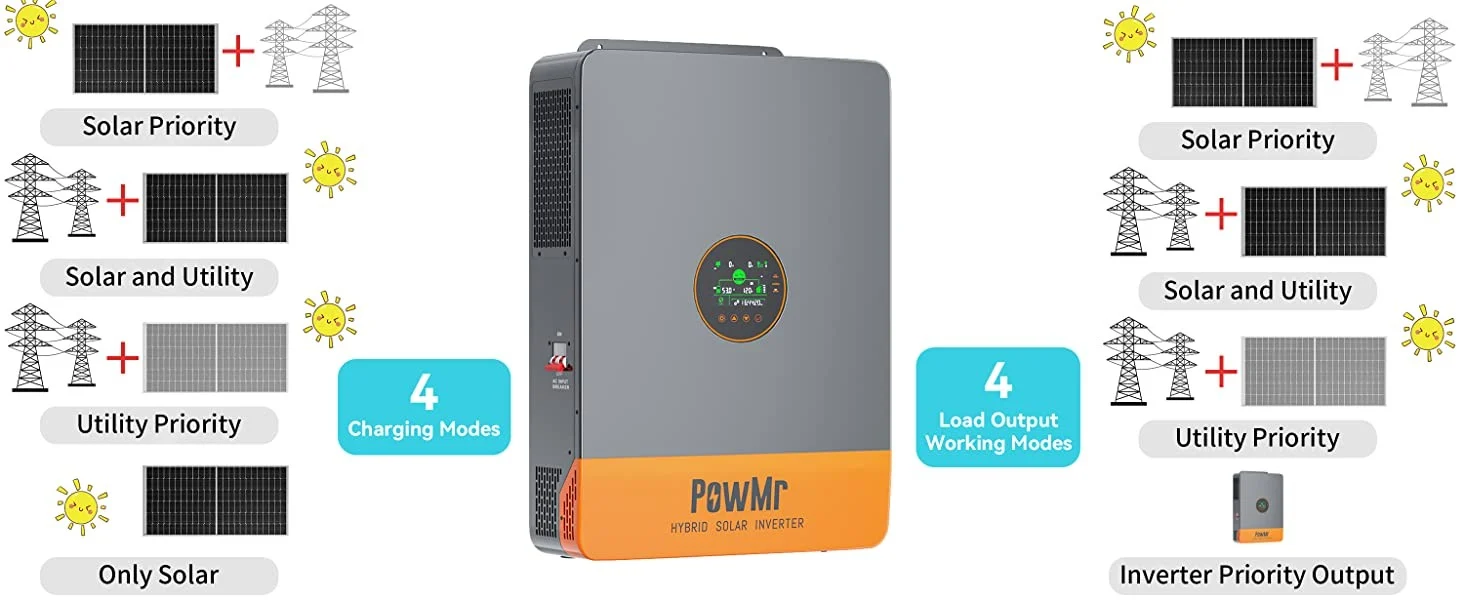

- 【Charging/AC output mode】: 4 AC output modes: Utility Priority Output, Solar and Utility Hybrid Output, Solar Priority Output, Inverter Priority Output. 4 battery charging modes: Hybrid Charging, Utility Priority Charging, Solar Priority Charging, Only Solar Charging.
Advantages

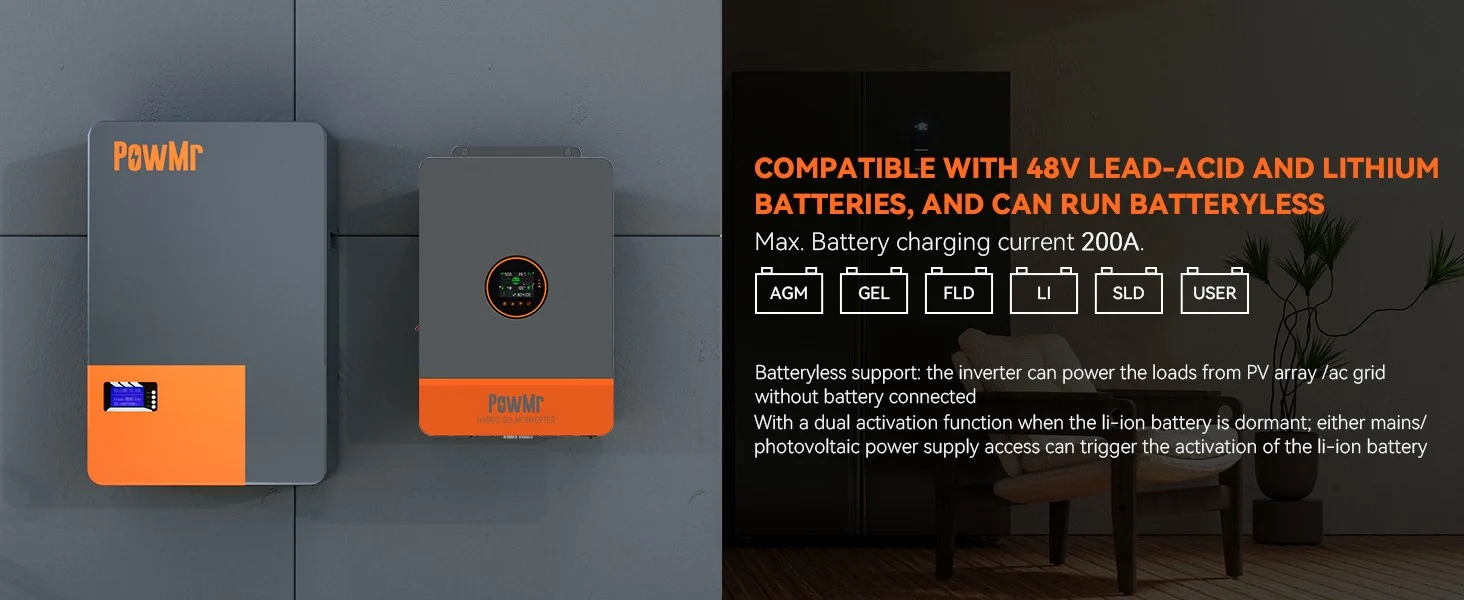

⚫ Supports lead acid battery and li-ion battery connections.
⚫ With a dual activation function when the li-ion battery is dormant; either mains/photovoltaic power supply access can trigger the activation of the Li-ion battery.

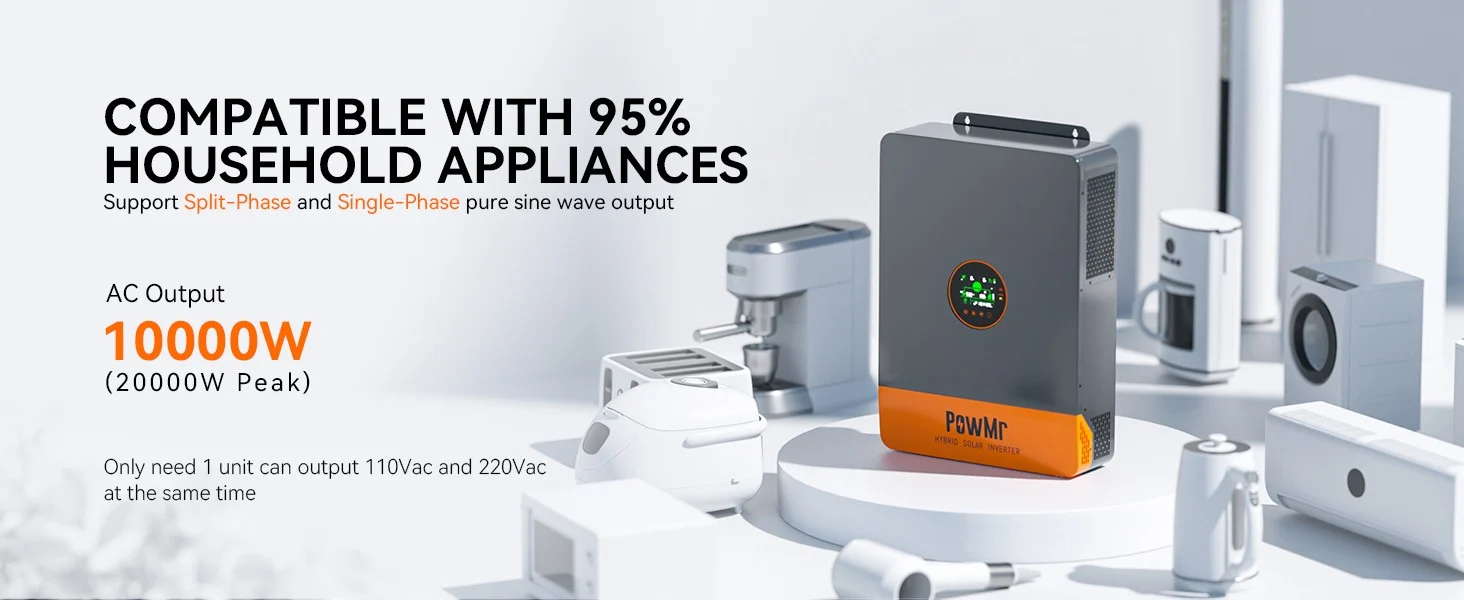

⚫ Support split-phase and single-phase pure sine wave output.
⚫ Supports four different voltage levels of 100Vac, 105Vac, 110Vac, and 120Vac per phase.
⚫ Supports two solar inputs and simultaneous tracking of two solar maximum power charging/carrying capacity functions.
⚫ Dual MPPT with 99.9% efficiency and maximum 22A current in a single circuit, perfectly adapted to high-power modules.
⚫ 4 charging modes are available: solar only, mains priority, solar priority, and mixed mains/PV charging.
⚫ With the time-slot charging and discharging setting function, you can set the time period for cutting in/out of mains charging and switch the time period between battery discharging and mains bypass power supply mode.
⚫ Energy saving mode function to reduce no-load energy losses.
⚫ With two output modes of utility bypass and inverter output, with uninterrupted power supply function.

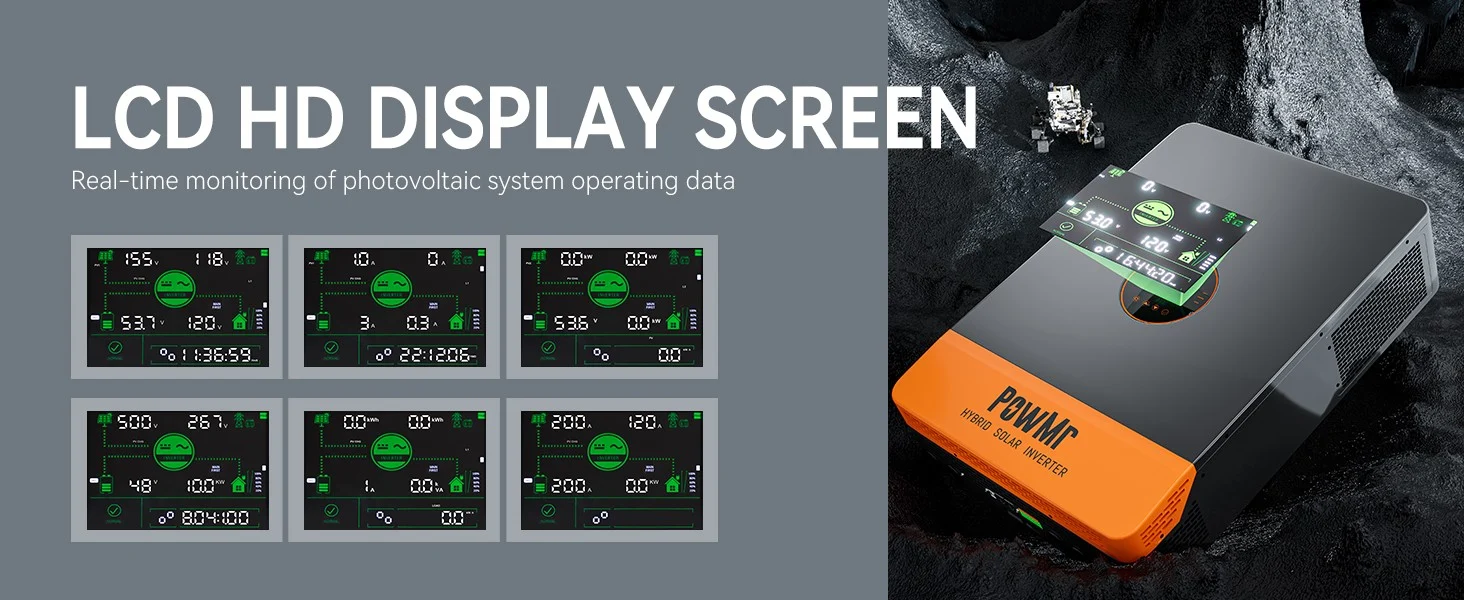

⚫ LCD large screen dynamic flow diagram design, easy to understand the system data and
operation status.
⚫ 360° protection with complete short circuit protection, over-current protection, over under voltage protection, overload protection, backfill protection, etc.
⚫ Support CAN, USB, and RS485 communication.
Specification:
| MODEL | POW-SunSmart 10K | CAN BE SET | |
| INVERTER OUTPUT | |||
| Rated Output Power | 10,000W | ||
| Max. Peak Power | 20,000W | ||
| Rated Output Voltage | 120/240Vac (split phase/single phase) | Y | |
| Load Capacity of Motors | 6HP | ||
| Rated AC Frequency | 50/60Hz | Y | |
| Wavefom | Pure Sine Wave | ||
| Switch Time | 10ms (typical) | ||
| Parall capacity | / | ||
| BATTERY | |||
| Battery Type | Li-ion / Lead-Acid / User Defined | Y | |
| Rated Battery Voltage | 48Vdc | ||
| Voltage Range | 40-60Vdc | Y | |
| Max.MPPT Charging Current | 200A | Y | |
| Max.Mains/Generator Charging Current | 120A | Y | |
| Max.Hybrid Charging Current | 200A | Y | |
| PV INPUT | |||
| Num. of MPP Trackers | 2 | ||
| Max.PV aray power | 11,000W | ||
| Max.input current | 22/22A | ||
| Max Voltage of Open Circuit | 500Vdc | ||
| MPPT Voltage Range | 125-425Vdc | ||
| MAINS / GENERATOR INPUT | |||
| Input Voltage Range | 90-140Vac | ||
| Frequency Range | 50/60Hz | ||
| Bypass Overload Current | 63A | ||
| EFFICIENCY | |||
| MPPT Tracking Efficiency | 99.90% | ||
| Max. Battery Inverter Efficiency | 92% | ||
| GENERAL | |||
| Dimensions | 620*435*130mm (2*1.4*0.4ft) | ||
| Weight | 21kg（46.3lb） | ||
| Protection Degree | IP20, Indoor Only | ||
| Operating Temperature Range | 15~55℃,>45℃ derated （5~131℉，>113℉ derated） | ||
| Noise | <60dB | ||
| Cooling Method | Internal Fan | ||
| Warranty | 2 Years | ||
| COMMUNICATION | |||
| Embedded Interfaces | RS485 / CAN / USB / Dry contact | Y | |
| Extemal Modules (Optional ) | Wi-Fi/ GPRS | Y | |
| CERTIFICATION | |||
| Safety | IEC62109-1, IEC62109-2,UL1741 | ||
| EMC | EN61000-6-1, EN61000-6-3, FCC 15 class B | ||
| RoHS | Yes | ||
Package Include:
- 1X The unit
- 1X User manual
