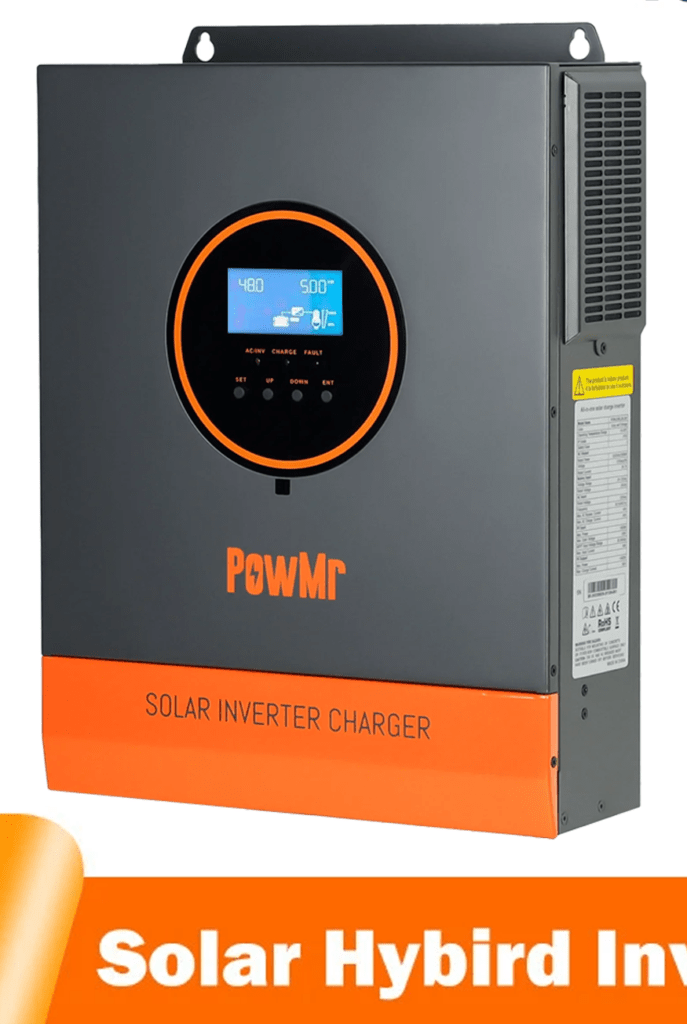

3200W 24V Solar Hybrid Inverter Off Grid 110V/120VAC
$443.99
Compra seguraFlujo limpio y rápido
Gestión propiaIntegrado a tu ecosistema
Atención directaExperiencia enfocada en conversión
Detalles del producto
PowMr Off Grid MPPT Solar Inverter is a new all-in-one hybrid solar inverter, which integrates solar energy storage &means charging energy storage and AC sine wave output.It can be accessed by a variety of household appliances and office loads, power tools, industrial equipment, and electronic audio and video equipment, including refrigerators, lamps, televisions, fans, air conditioning, and other AC loads
3.2kW Pure Sine Wave inverter charge
This 3200W pure sine wave invereter charger offers a seamless integration of solar energy storage and means chargingenergy storage, along with AC sine wave output. With advanced DSP control and control algorithm, it offers high responsespeed, reliability, and industrial standard.
Built-In MPpT Solar charge controller
With the latest optimized MppT technology, the buit-in solar charge controller can quickly track the maximum power point ofthe PV array in real-time with the efficiency up to 99.9%, The system has a max PV charging current of 60A and a max ACcharging current of 40A, as well as a max hybrid charging current of 100A, making it a highly eficient and reliable option forsolar energy storage and charging.

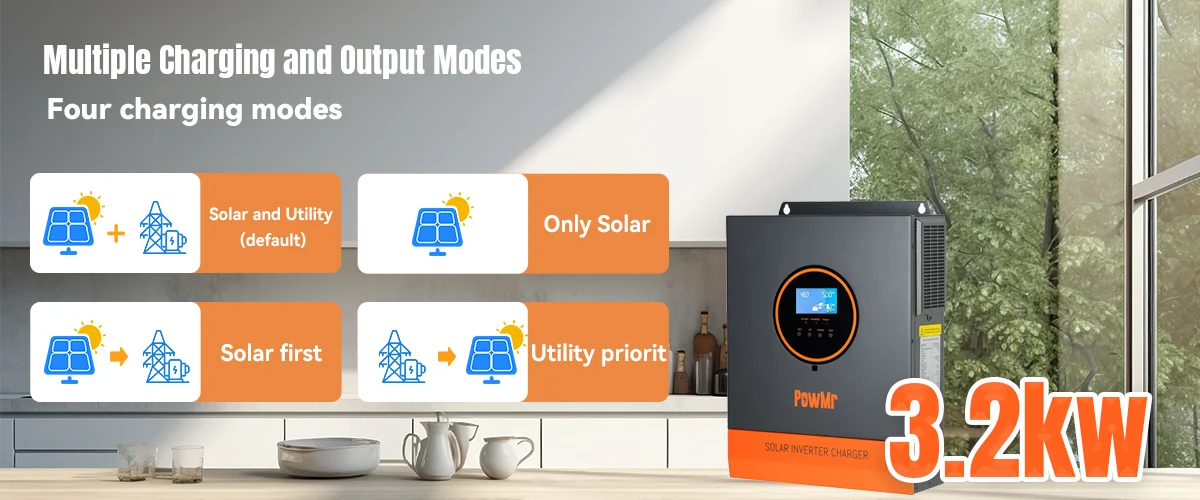

Multiple charging and output Modes
POW-LVM3K-24V-H is a versatile hybrid solar inverter charger that offers 4 charging modes (Only Solar, Mains/Solar Priorityand hybrid charging) and 3 output modes(mains bypass and inverter output; uninterrupted power supply) to Maximize theuse of energy.
【Pure Sine Wave】3200W pure sine wave inverter 24VDC to 110V/120VAC, Built-in 100A MPPT charge controller. With full digital voltage and current double closed-loop control and advanced SPWM technology, the charging efficiency is up to 99.9%. With high safety performance, it can protect your home circuit!

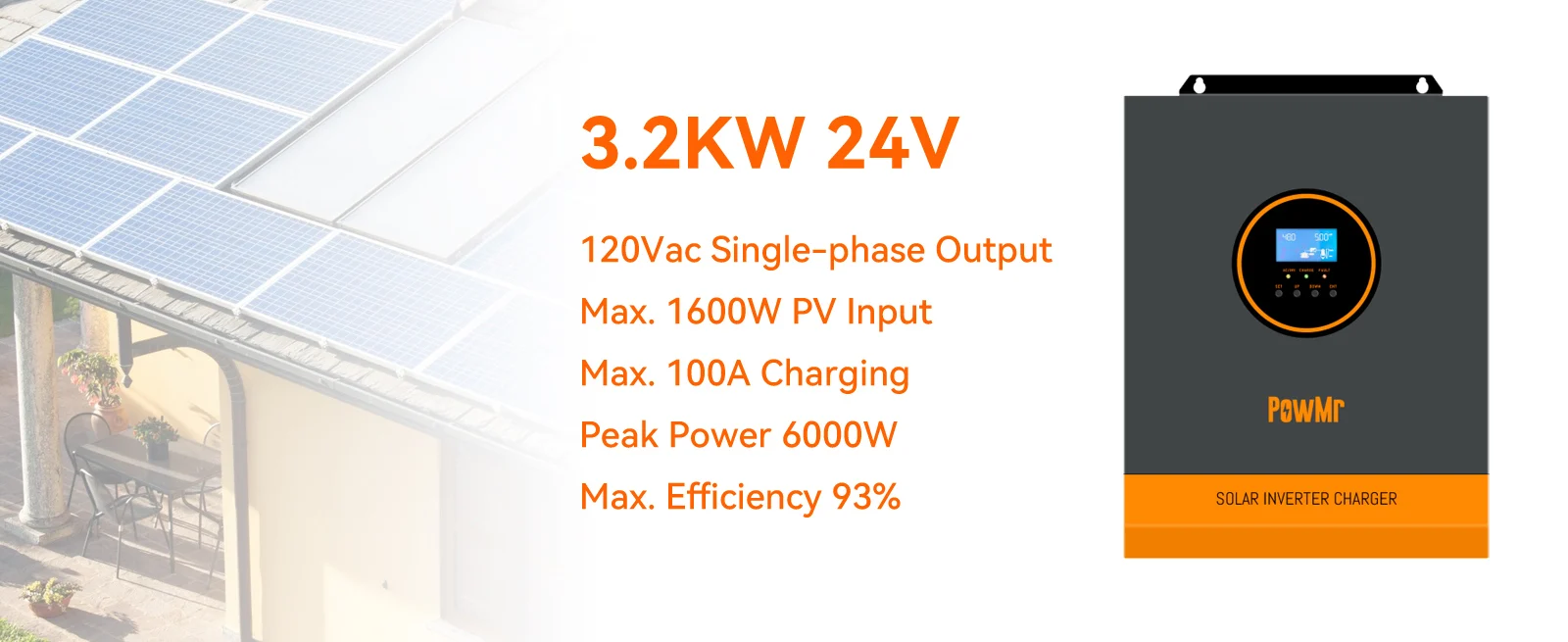

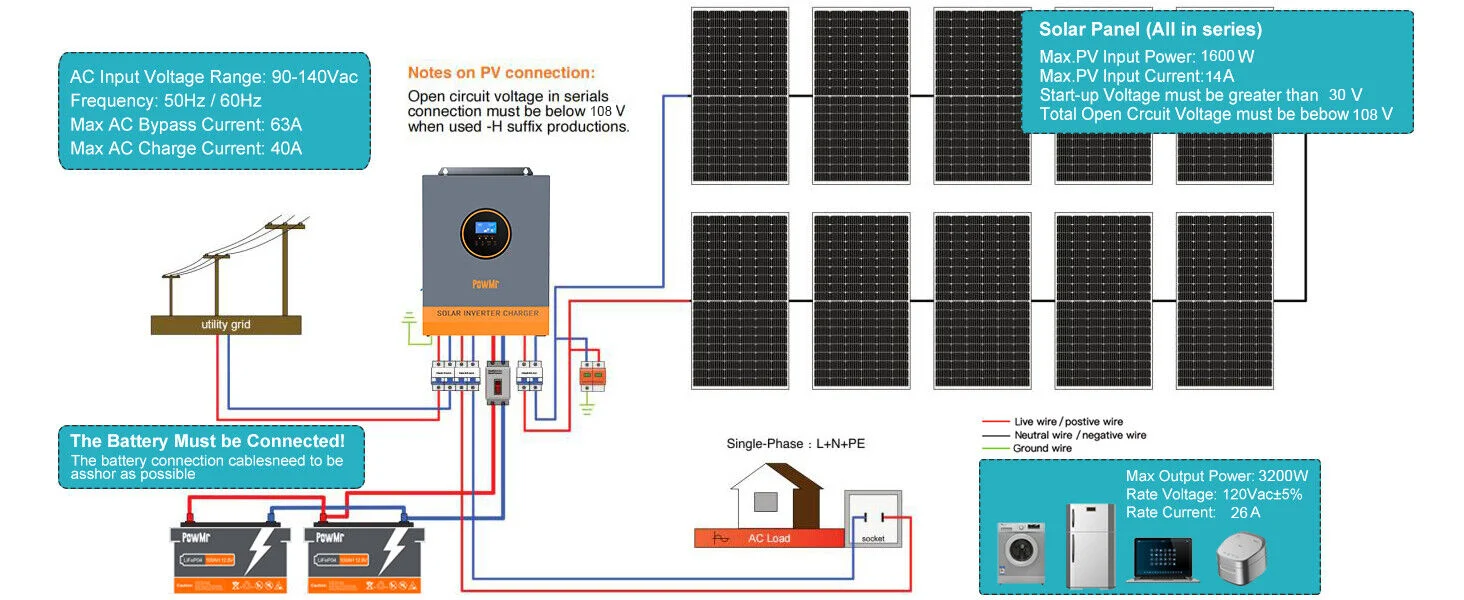

【Technical Parameters】3200W Solar Inverter accept Max 16W /108V solar power and AC input 90-140Vac; Peak power: 6000VA; MPPT Voltage Range: 30 ~ 108Vdc, Max PV Output Power: 1600W. Max Current: 60A.

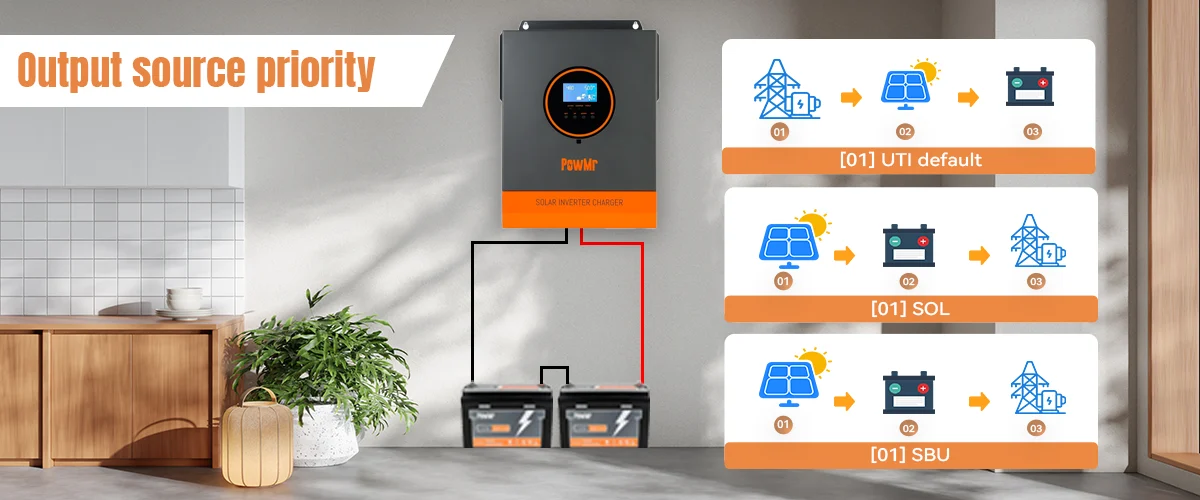

【Four Safe Charging Modes】24V Inverter Four charging modes can be selected: solar/utility priority/solar priority/utility hybrid charging. Three output modes can be set. PV priority/Utility priority/Inverter priority, which can meet different application needs of users.

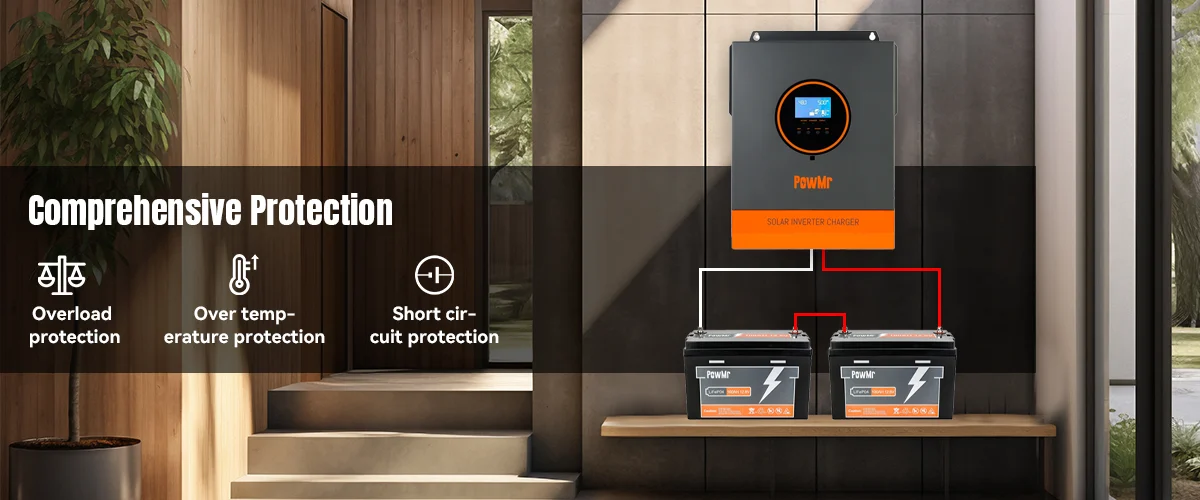

【Multiple Protection Functions】Multiple Protection Functions】LCD display design and 3 LED indicators dynamically display system data and operating status for easy viewing, while the inverter also has short circuit protection, overload protection, reverse protection, overvoltage, and under voltage protection, which greatly ensures your circuit and power safety.
【Diverse Use Scenarios】Off Grid Inverter can be used in connection with 24V lead-acid(seal, AGM,Gel,Flooded) and lithium batteries. It can power all kinds of appliances in home or office environment, including motor-type appliances such as tube lights, fans, refrigerators, and air conditioners.
Features
1. Full digital voltage and current double closed-loop control, advanced SPWM technology, the output of pure sine wave.
2. Two output modes: mains bypass and inverter output; uninterrupted power supply.
3. Available in 4 charging modes: Only Solar, Utility Priority, PV Priority, Utility & Solar hybrid charging.
4. Advanced MPPT technology with an efficiency of 99.9%.
5. Designed with an LCD screen and 3 LED indicators for a dynamic display of system data and operating pasting status.
6. Manual ON/OFF switch controlling AC output.
7. Power saving mode available to reduce empty load loss.
8. Intelligent variable speed fan to efficiently dissipate heat and extend system life.
9. Lithium battery activation by PV solar or mains, allowing access of lead-acid batteries and lithium batteries.
10. Complete protections, including short circuit protection, over-voltage and under-voltage protection, overload protection, reverse
protection, etc

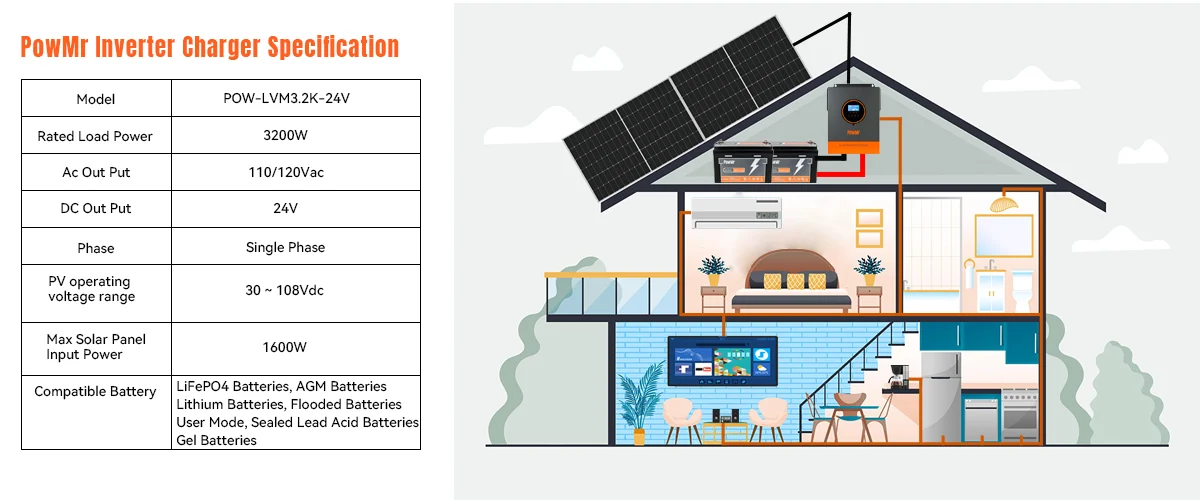

| Model | POW-LVM3.2K-24V |
| AC mode | |
| Rated input voltage | 110/120Vac |
| Input voltage range | (90Vac~140Vac) ±2% |
| Frequency | 50Hz/ 60Hz (Auto detection) |
| Frequency Range | 47±0.3Hz ~ 55±0.3Hz (50Hz); |
| 57±0.3Hz ~ 65±0.3Hz (60Hz); | |
| Overload/short-circuit protection | Circuit breaker |
| Max. efficiency | >92% |
| Conversion time (bypass and inverter) | 10ms (typical) |
| AC reverse protection | Available |
| Maximum bypass overload current | 40A |
| Inverter mode | |
| Output voltage waveform | Pure sine wave |
| Rated output power (VA) | 3200 |
| Rated output power (W) | 3200 |
| Power factor | 1 |
| Rated output voltage (Vac) | 120Vac |
| Output voltage error | ±5% |
| Output frequency range (Hz) | 50Hz ± 0.3Hz |
| 60Hz ± 0.3Hz | |
| Max. efficiency | 0.92 |
| Overload protection | (102% < load <110%) : Alarm and shutdown after 5 minutes. |
| (110% < load < 125%): Alarm and shutdown after 10 seconds. | |
| Load >125% ± 10%: Alarm and shutdown after 5 seconds. | |
| Peak power | 6000VA |
| Rated battery input voltage | 24V (Minimum starting voltage 22V) |
| Battery voltage range | 20.0Vdc~33Vdc ± 0.3Vdc |
| Power saving mode | Load ≤50W |
| AC charging | |
| Battery type | Lead acid or lithium battery |
| Max. charging current(can be set) | 0-40A |
| Charge current error | ± 5Adc |
| Charge voltage range | 20 ~ 33Vdc |
| Short circuit protection | Circuit breaker and blown fuse |
| Circuit breaker specifications | 40A |
| Overcharge protection | Alarm and stop charging after 1 minute |
| PV charging | |
| Max. PV open-circuit voltage | 108Vdc |
| PV operating voltage range | 30 ~ 108Vdc |
| MPPT voltage range | 30 ~ 90Vdc |
| Battery voltage range | 20 ~ 33Vdc |
| Maximum input power | 1600W |
| PV charging current range (can be set) | 0-60A |
| Charging short circuit protection | Blown fuse |
| Wiring protection | Reverse connection protection |
| hybrid charging(AC + PV charging) | |
| Max. charging current (can be set) | 0-100A |
| Other information | |
| Storage temperature range | -25°C to 60°C |
| Operating temperature range | -10°C to 55°C |
| Humidity range | 5% to 95% (Conformal coating protection) |
| Noise | ≤60dB |
| Heat dissipation | Forced air cooling, variable speed of fan |

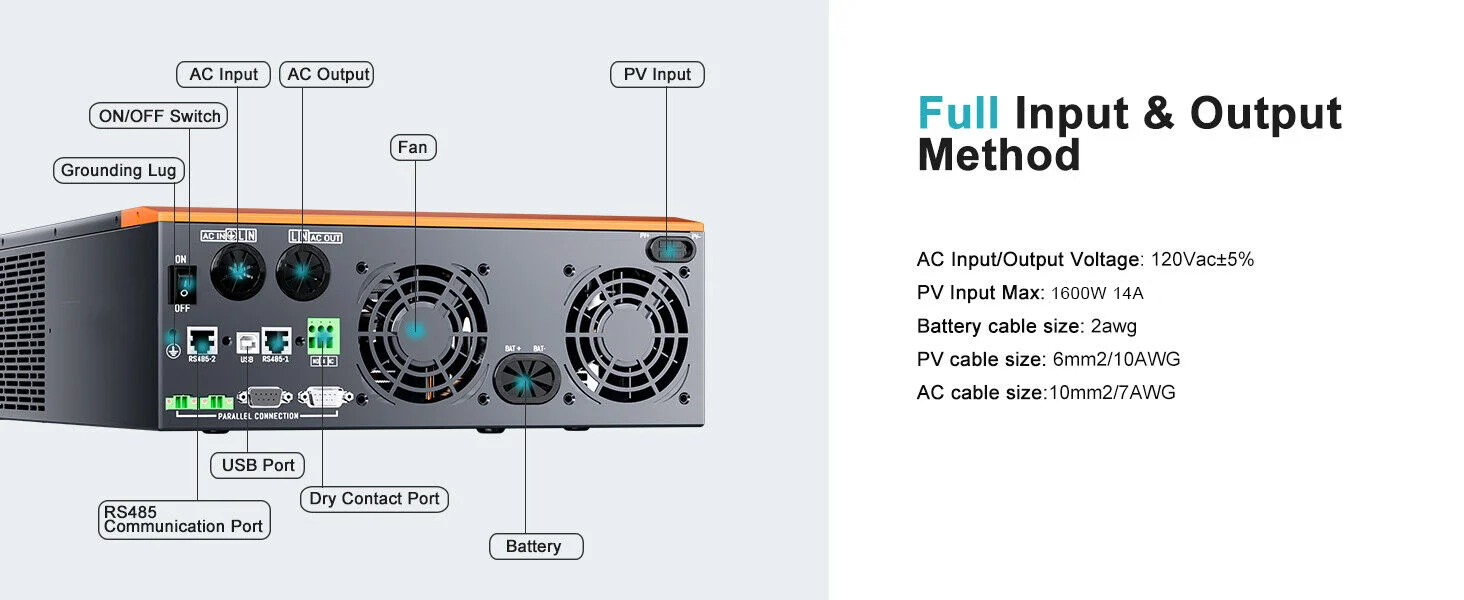

| Communication interface | USB / CAN / RS485(WiFi/GPRS) / Dry contact |
| Size | 378*280*103mm(1.2*0.9*0.3ft) |
| Weight | 6.8kg(15lb) |
| Certification | CE(IEC 62109-1)/ CETL(UL 1741/ CSA C22.2 NO.107.1) |
| EMC certification level | EN61000, C2 |
